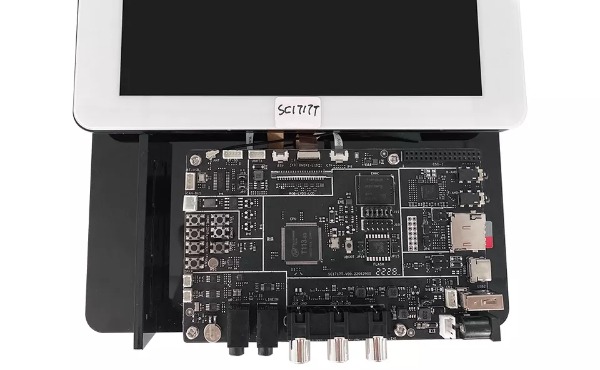

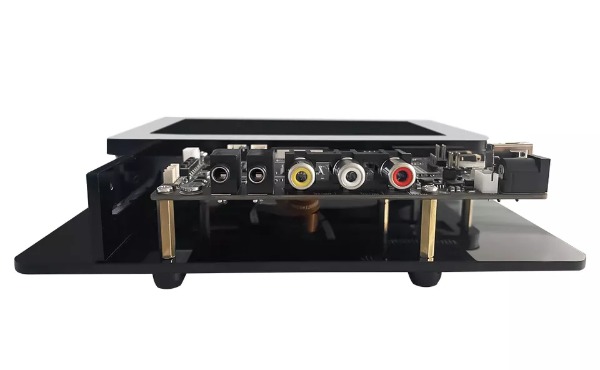

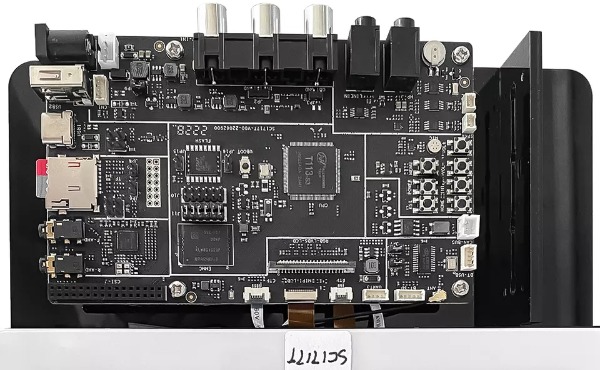

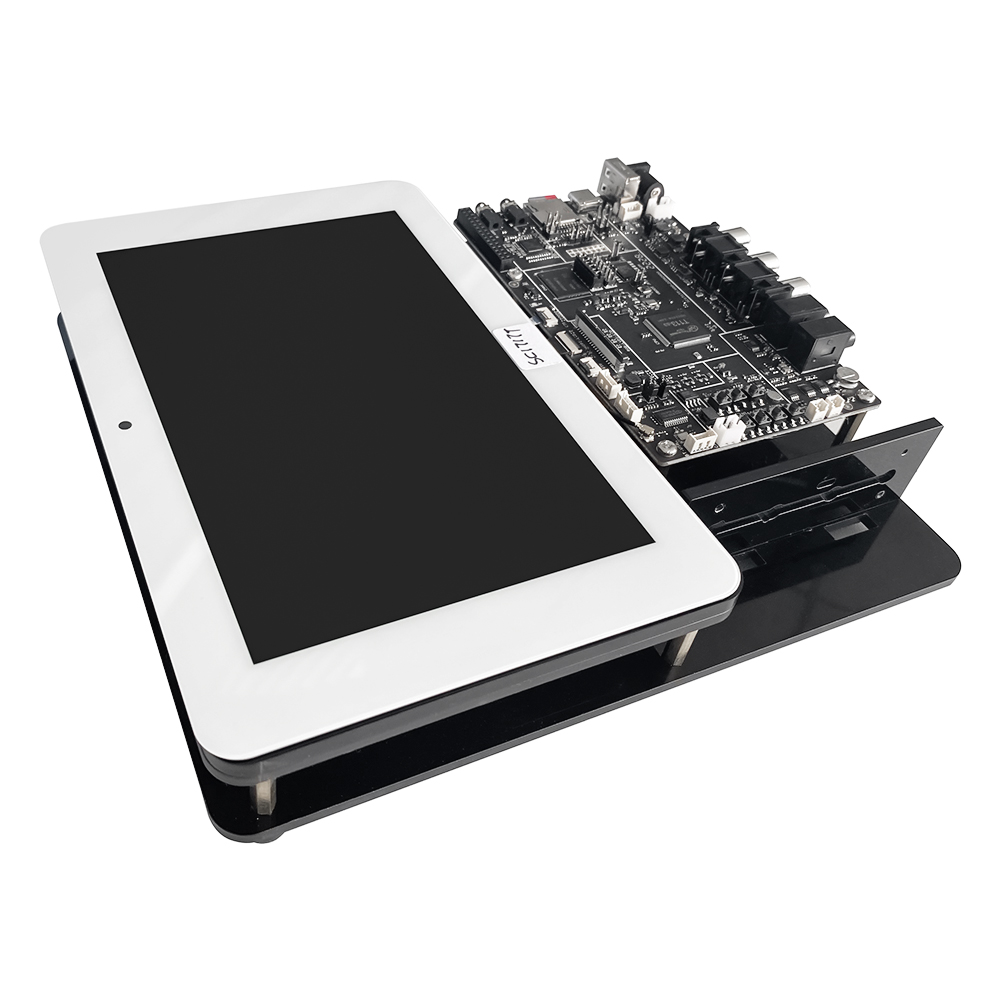

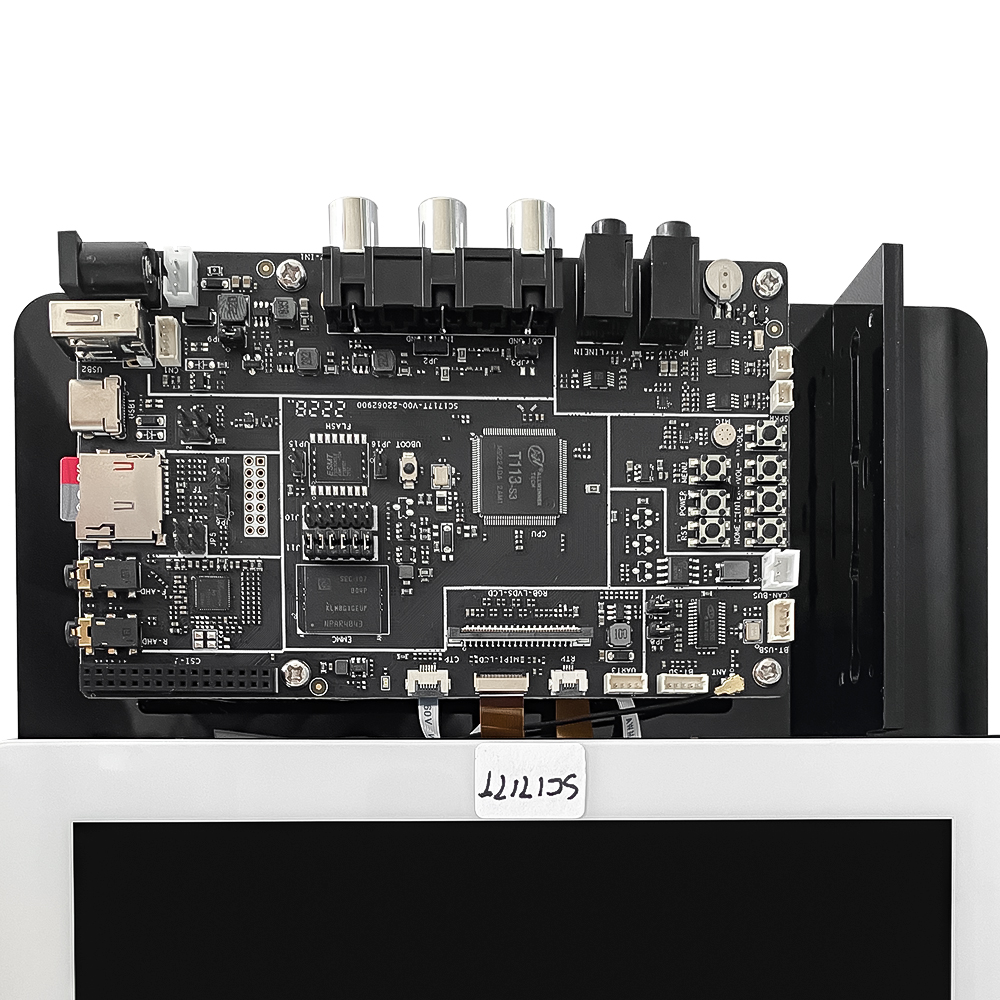

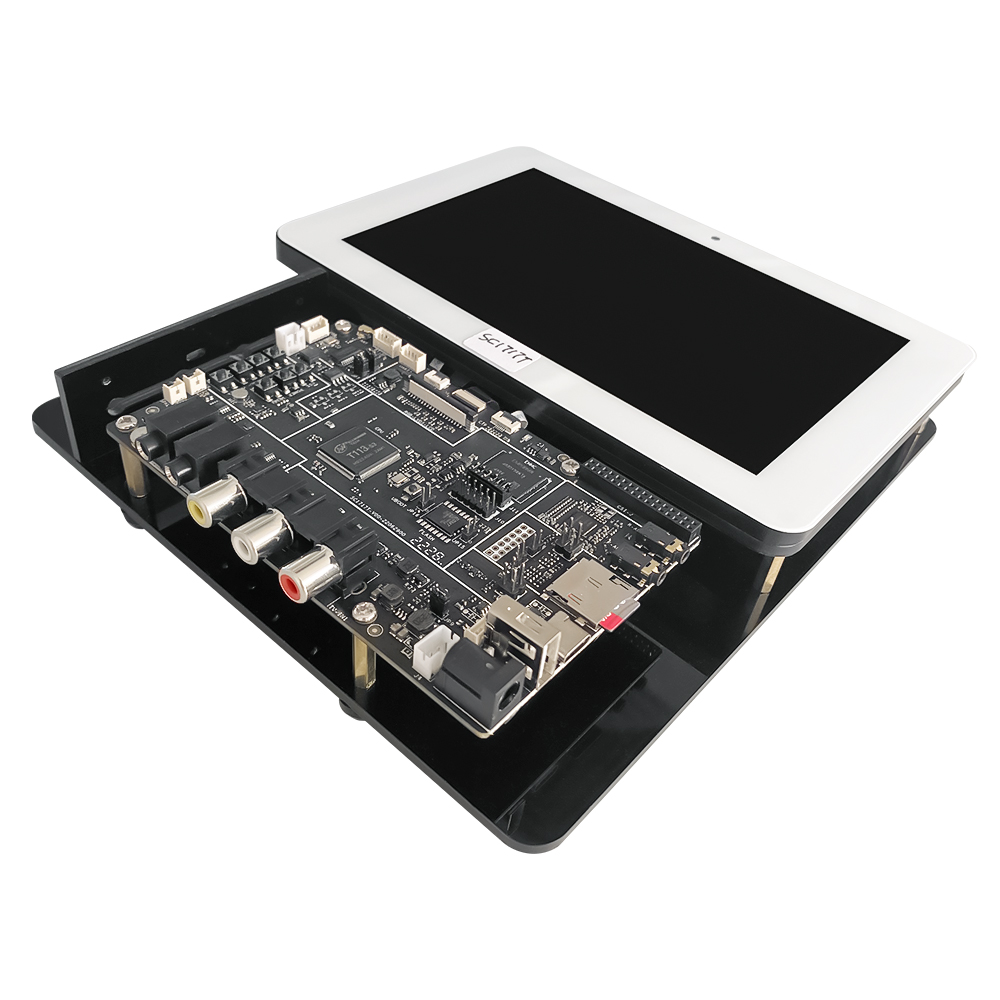

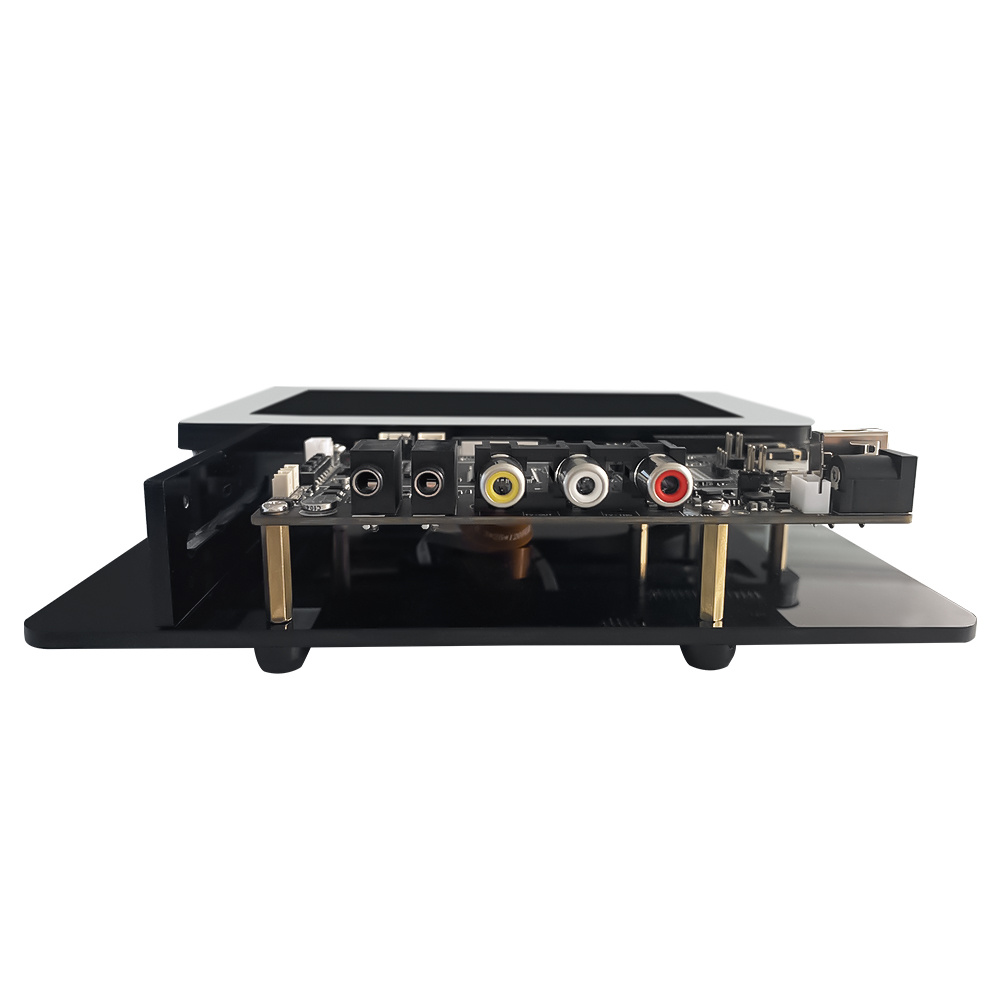

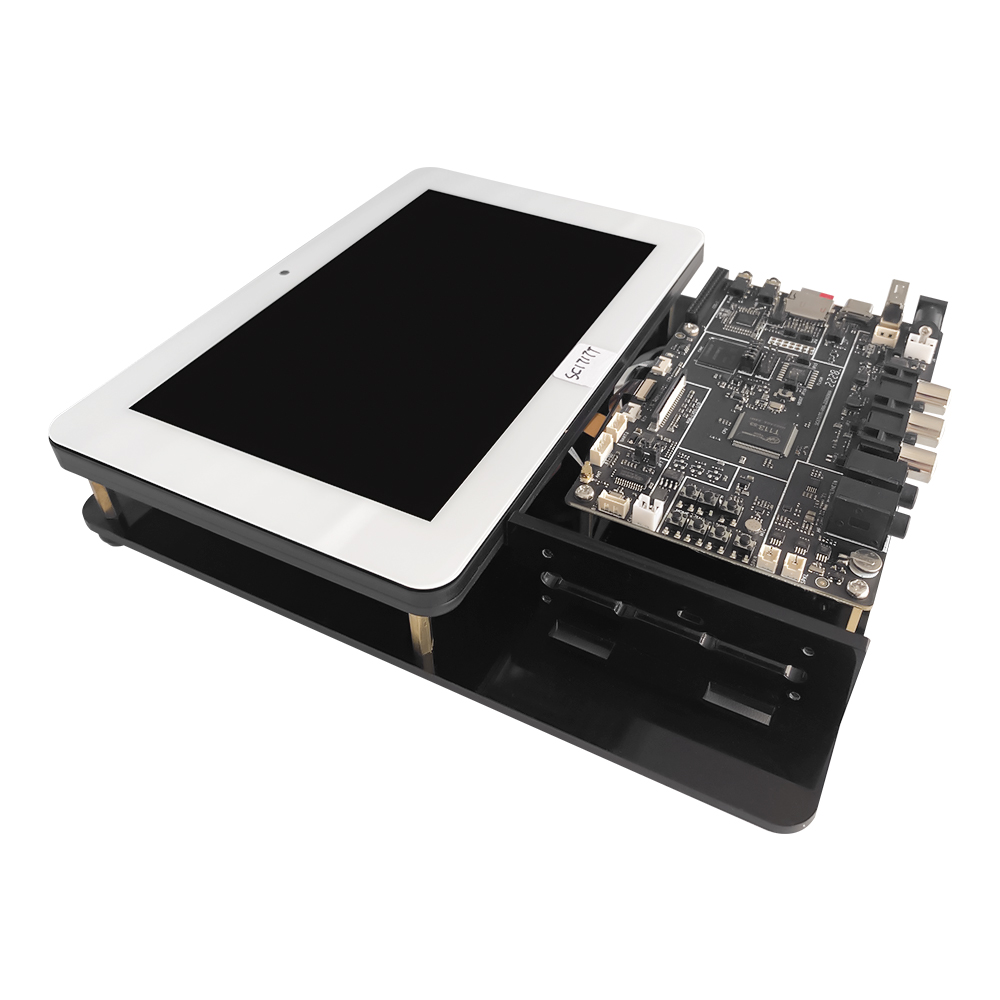

T113-S3开发板是索芯科技专门开发的演示板，全志 T113-S3 用于向客户展示强大的多媒体功能和智能视频处理能力。客户也可以在T113-S3开发板上做前期软件开发工作，开发板提供多种接口，为客户硬件设计提供参考，客户只需添加或删除T113-S3开发板的电路即可完成硬件设计。
购买开发板提供相应的原理图、布局、引脚分配、SDK 等开发文档，并且将提供围绕平台的技术支持，关于具体参数请联系我们V 15815527052。
* CPU Allwinner T113-S3,Dual-core ARM CortexTM-A7 CPU.
* RAM Embedded with 128MB DDR3, clock frequency up to 800MHz.
* Memory SPI NAND Flash 128MB, eMMC (5.0 interface)8GB,Development board default8GB eMMC。
* Audio Stereo output ,AMP IC is CS8302M, support speaker * 2 pcsAnlog MIC *1 pcs.
* Network BT IC is WT2605-24SS,FM IC is QN8035.
* Video output CVBS output*1pc,PD interface, used for MIPI or LVDS or RGB interface,thedevelopment board uses MIPI interface by
default.
* USB Type-C*1 pcs, Type-A *1 pcs, USB connector *1 pcs.
* CAN bus SIT1051T, support CAN bus.
* Video input N5, Support AHD camera *2 pcs input, CVBS input *2pcs ,.
* RTC RTC IC RTC8563SMSF, RTC battery ML621-TZ1 FDK

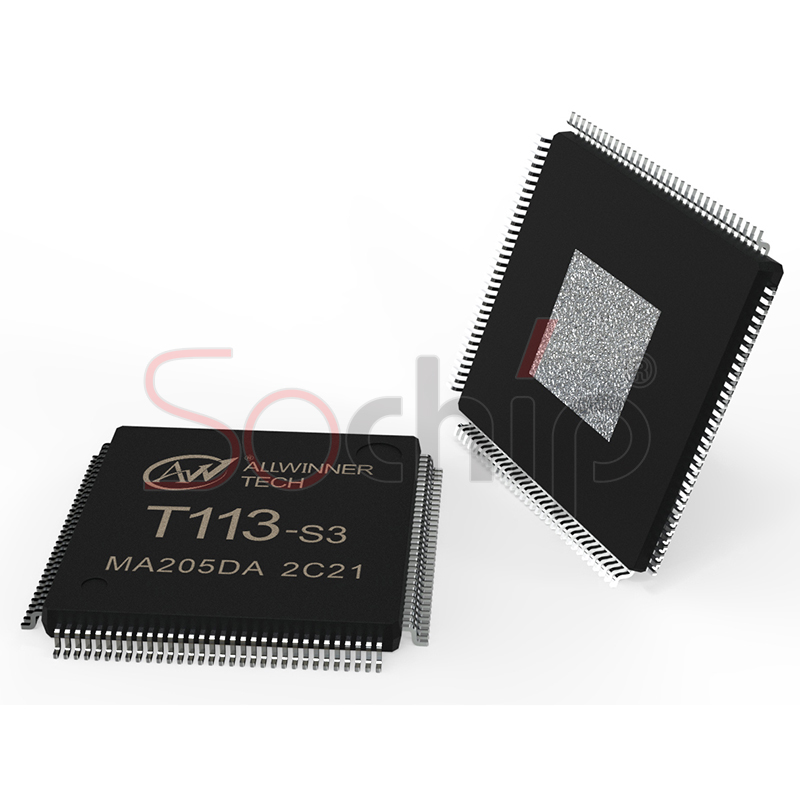

T113-S3 features
T113-S3 is an advanced application processor. It integrates dual-core Cortex A7 CPU and single core HiFi4 DSP to provide the high efficient computing power. T113-S3 supports full format decoding such as H.265, H.264, MPEG-1/2/4, JPEG, VC1, and so on. The independent hardware encoder can encode in JPEG or MJPEG. Integrated multi ADCs/DACs and 12S/PCM/DMIC/OWA audio interfaces can provide the perfect voice interaction solution. T113-S3 comes with extensive connectivity to facilitate product expansion, such as CAN, USB, SDIO, EMAC, TWI, UART, SPI, PWM, GPADS, IR TX& RX, and so on.
Features
* Dual-core ARM CORTEX A7 CPU
* HIFI4 DSP
* Memories
* Embedded with 128MB DDR3, clock frequency up to 800 MHz
* Three SD/MMC host controller interfaces: SD3.0/SDIO3.0/eMMC5.0
* Video Engine
* 265/H.264/mpeg-1/mpge-4/jpeg/vc1/xvid/Sorenson Spark decoding, up to 1080p@60fps
* JPEG/MJPEG encoding, up to 1080p@60fps
* Video and Graphics
* Allwinner smart Color 20. post processing for an excellent display experience
* Supports de-interlacer(DI) up to 1080p+@60fps
* lane MIPI DSI up to 1920*1200@60fps
* CVBS OUT interface, supporting NTSC and PAL format
* Video Input
* bit digital camera interface
* CVBS IN interface, supporting NTSC and PAL format
* Analog Audio Codes
* 2 DACs and 3 ADCs
* Analog audio interfaces: HPOUTL/R, MICIN3P/N, LINEINL/R, FMINL/R
* Two 12S/PCM external interfaces(I2S1.I2S2)
* Maximum 8 digital PDM microphones(DMIC)
* OWA TX and OWA RX, compliance with S/PDIF interface
* Security System
* AES, DES, 3DES, RSA, MD5, SHA, HMAC
* Integrated 2 Kbits OTP storage space
* External Peripherals
* USD 2.0 DRD(USB0) and USB 2.0 HOST (USB1)
* 10/100/1000 Mbps Ethernet port with RGMII and RMII interfaces
* Up to 6 UART controllers(UART0,UART1,UART2,UART3,UART4,UART5)
* Up to 2 SPI controllers(SPI0,SPI1)
* Up to 4 TWI controllers(TWI0,TWI1,TWI2,TWI3)
* CIR RX and CIR TX
* 8 independent PWM channels (PWN0 to PWM7)
* CH gpads
* 4-ch TPADS
* LEDC CAN*2
* Package
* Elqfp128,14mm*14mm*1.4mm
Application:
Car MP5 Solution
Car instrument solution
HMI Solution
PLC Solution
行业分类 : 汽车电子
开发平台 : Allwinner 全志
交付形式 : PCBA,软件
性能参数 : CPU : Dual-core ARM CORTEX A7 CPU,RAM : Embedded with 128MB DDR3
应用场景 : 车载MP5播放器、车载仪表、HMI、PLC PLC
